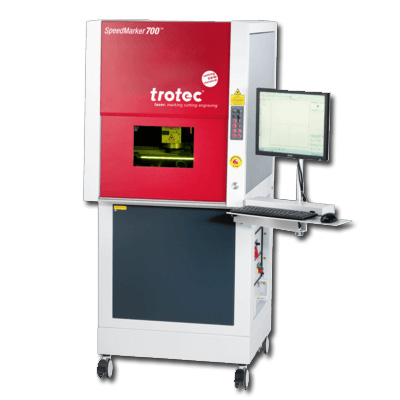

SpeedMarker 700

The most complete tool for industrial laser marking

Developed for efficient laser marking of metals and plastics along the industrial production chain, the SpeedMarker Series offers you the perfect combination of intelligent software with highest quality hardware. The included software package SpeedMark is able to communicate with external systems and without any special knowledge the user can program complete marking processes within shortest time.

Configurated with Fiber Laser Source

Max Work Area, 580 x 495mm depending on lense

Max Height, 570mm

Laser Power Fiber, 10 - 50 Watts

Laser Power MOPA, 20 + 100 Watts

Overall Dimensions, 780 x 1802 (1662) x 960mm

Configurated with CO₂ Laser Source

Max Work Area, 580 x 495mm depending on lense

Max Height, 570mm

Laser Power CO₂, 30 - 45 Watts

Overall Dimensions, 780 x 1802 (1662) x 960mm

Max. workpiece height is based on lens F-100. A larger lens will increase the focal length, which reduces the max. workpiece height.
